Background

This is a short description how Kickstart4J works.


1. User types a JNLP URL or clicks on a link with that URL [less...]


2. Webstart (JRE >= 1.4.2) loads and starts Kickstart4J [less...]



   • No application specific JARs at this stage
   • Only 6 signed JAR files necessary (All provided by Kickstart4J)
     • Kickstart4j (main)
     • Commons IO (1.4)
     • Commons Exec (1.0)
     • Utils4J (0.7.0)
     • Utils4Swing (0.9.5)
     • Log4J (1.2.9)
3. Kickstart4J loads XML definition for installation [more...]


   <?xml version="1.0" encoding="ISO-8859-1"?>
   <application>
     <version>0.1.0</version>
     <title>Kickstart4J SwingSet2</title>
     <vendor>Future Invent Informationsmanagement GmbH</vendor>
     <description>Local installed SwingSet2 with it's own Java Runtime 1.6</description>
     <exitAfterExecute>true</exitAfterExecute>
     <destPath>c:/fuin.org/examples/swingset2</destPath>
     <idFilename>.org-fuin-examples-SwingSet2</idFilename>
     <silentInstall>false</silentInstall>
     <silentUpdate>false</silentUpdate>
     <locale>en</locale>
     <lazyLoading>false</lazyLoading>
     <logFilename>${destDir}/logs/kickstart.log</logFilename>
     <javaExe>${destDir}/jre6/bin/java.exe</javaExe>
     <javaArgs>-classpath ${classpath} SwingSet2</javaArgs>
     <msgFileUrl/>
     <mkdir path="logs"/>
     <file path="lib" file="SwingSet2.jar" hash="bb8c84a0c833471363a58a75b3a10944" size="1670951" unzip="false" loadAlways="true" addToClasspath="true" srcFileUrl="http://www.fuin.org/examples/kickstart4j/SwingSet2.jar"/>
     <file path="" file="jre6.zip" hash="6657c9fe1f1771c9505bf8760fc120f4" size="24735860" unzip="true" loadAlways="true" addToClasspath="false" srcFileUrl="http://www.fuin.org/examples/kickstart4j/jre6.zip"/>
     <file path="jre6" file="README.txt" hash="f4d7b1802f97b747d921dff10eb533e7" size="15773" unzip="false" loadAlways="true" addToClasspath="false" srcFileUrl="http://www.fuin.org/examples/kickstart4j/README.txt" order="1"/>
   </application>

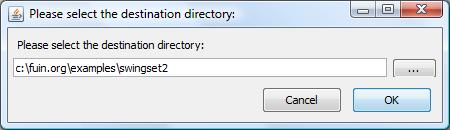

4. Kickstart4J asks the user for a destination directory (optional) [less...]

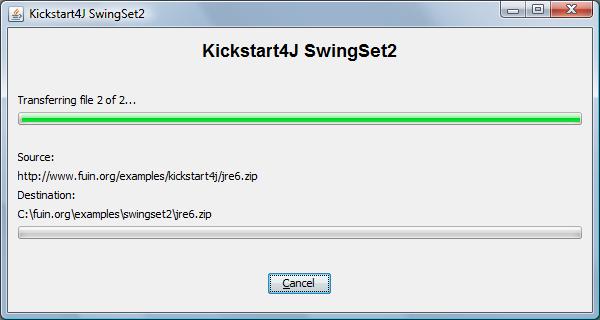

5. Kickstart4J copies the necessary application files to user's harddisk [more...]



   • Includes a local JRE which version is completely independent of Webstart's Java version
   • No need to sign any of the application's JAR files!

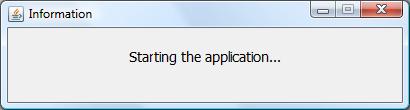

6. Kickstart4J runs the application using the local installed JRE [less...]

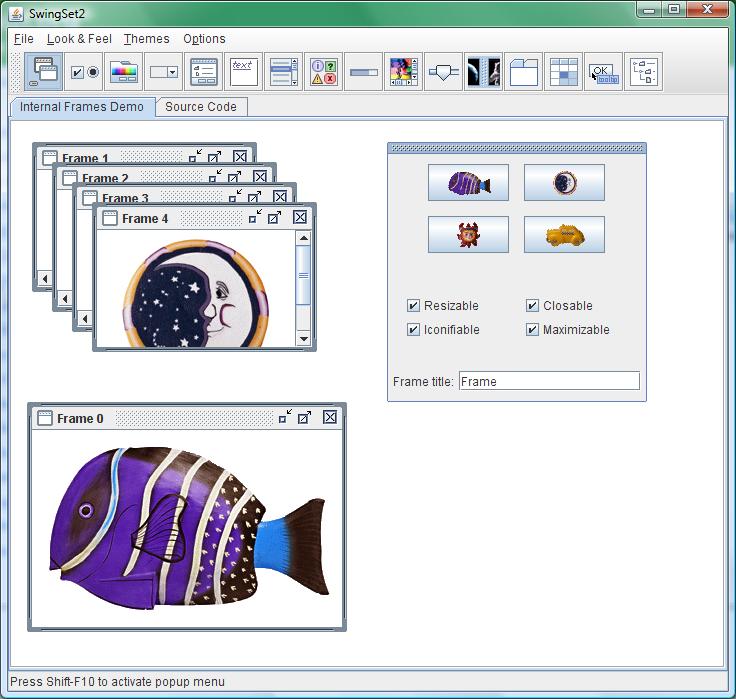

7. Your application (here SwingSet2 example) is running as local installed application [more...]


8. If required, the started application can use Lazy Loading to load JARs and other files On Demand [less...]


   // Path relative to the installation directory and file to load
   File jar = fileLoader.loadFile("lib", "abc.jar");
   // Add the JAR dynamically to the classpath
   Utils4J.addToClasspath(jar.toURI().toURL());
